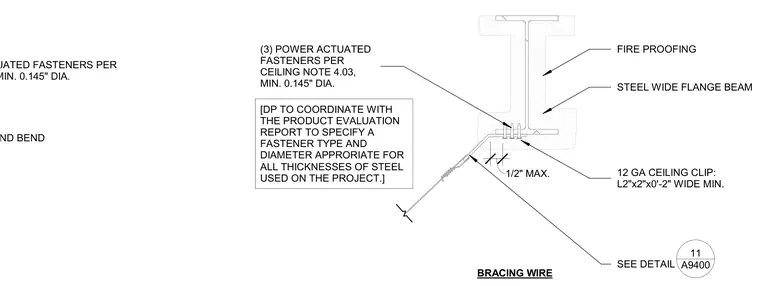

A 12 gauge ceiling clip measuring 2 inches by 2 inches by 2 inches wide minimum is fastened to the underside of a steel wide flange beam with three power-actuated fasteners having a minimum 0.145-inch diameter. A bracing wire connects to the ceiling clip and extends downward to support the ceiling assembly. Fireproofing coats the steel wide flange beam above the connection. The fastener type and diameter are coordinated with the product evaluation report to suit all thicknesses of steel used on the project.
(3) POWER ACTUATED FASTENERS PER CEILING NOTE 4.03, MIN. 0.145" DIA. BRACING WIRE FIRE PROOFING SEE DETAIL STEEL WIDE FLANGE BEAM 12 GA CEILING CLIP: L2"x2"x0'-2" WIDE MIN. A9400 11 [DP TO COORDINATE WITH THE PRODUCT EVALUATION REPORT TO SPECIFY A FASTENER TYPE AND DIAMETER APPRORIATE FOR ALL THICKNESSES OF STEEL USED ON THE PROJECT.] 1/2" MAX. CUT FLANGES AND BEND (2) POWER ACTUATED FASTENERS PER CEILING NOTE, MIN. 0.145" DIA.
