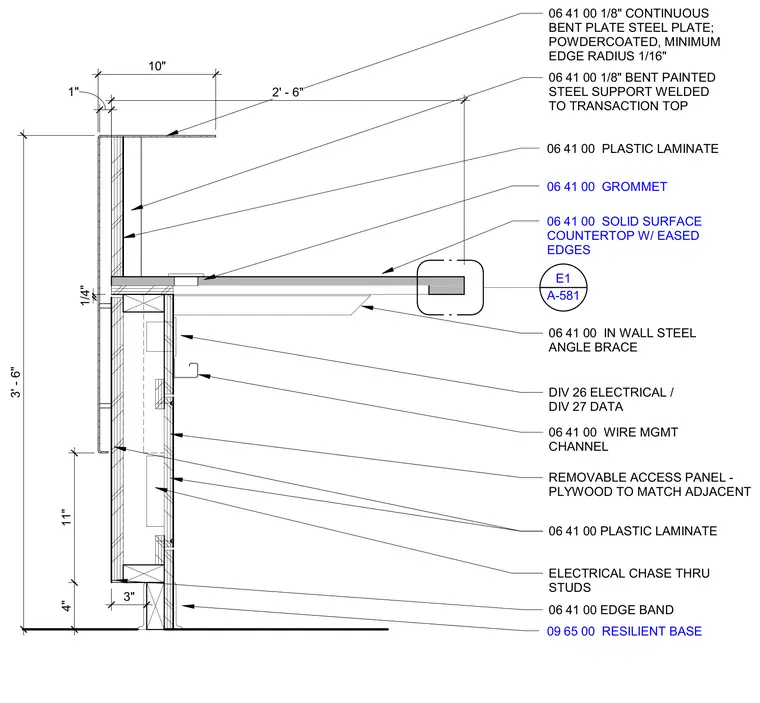

A transaction counter assembly features a solid surface countertop with eased edges supported by an in-wall steel angle brace and an eighth-inch continuous bent plate steel plate with a powder-coated finish and a minimum one-sixteenth-inch edge radius. The front facade is clad in plastic laminate with matching edge banding and a resilient base at the floor. An eighth-inch bent painted steel support is welded to the transaction top. The knee space includes a removable plywood access panel to match adjacent finishes and houses electrical chases through studs with wire management channels for division 26 electrical and division 27 data routing.
06 41 00 WIRE MGMT CHANNEL 06 41 00 IN WALL STEEL ANGLE BRACE DIV 26 ELECTRICAL / DIV 27 DATA REMOVABLE ACCESS PANEL - PLYWOOD TO MATCH ADJACENT ELECTRICAL CHASE THRU STUDS 1/4" 06 41 00 PLASTIC LAMINATE 06 41 00 EDGE BAND 06 41 00 1/8" CONTINUOUS BENT PLATE STEEL PLATE; POWDERCOATED, MINIMUM EDGE RADIUS 1/16" 06 41 00 1/8" BENT PAINTED STEEL SUPPORT WELDED TO TRANSACTION TOP 10" 3' - 6" 4" 11" 2' - 6" 1" 06 41 00 SOLID SURFACE COUNTERTOP W/ EASED EDGES 06 41 00 PLASTIC LAMINATE 3" A-581 E1 09 65 00 RESILIENT BASE 06 41 00 GROMMET
