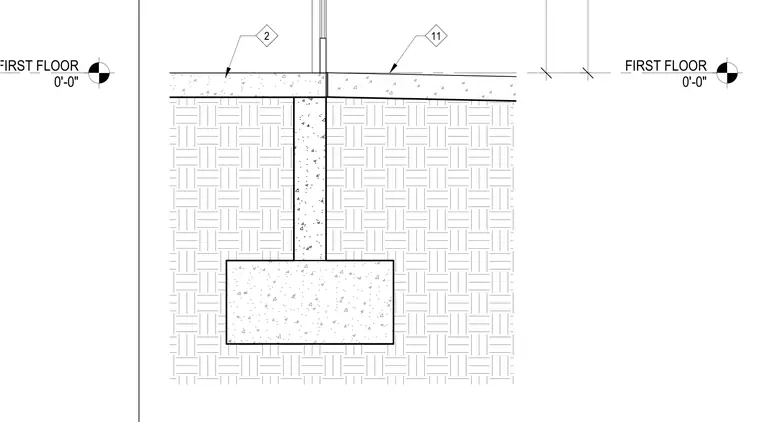

This wall section details the connection between the first floor slab-on-grade, a concrete stem wall, and a concrete spread footing. The foundation system includes a vertical concrete stem wall centered on a concrete footing resting on compacted subgrade. The first floor level is established at the top of the slab, which bears directly on the stem wall.
