Telecommunications · A-VDS3Y

Temporary Data Interconnect

Elements

About this detail

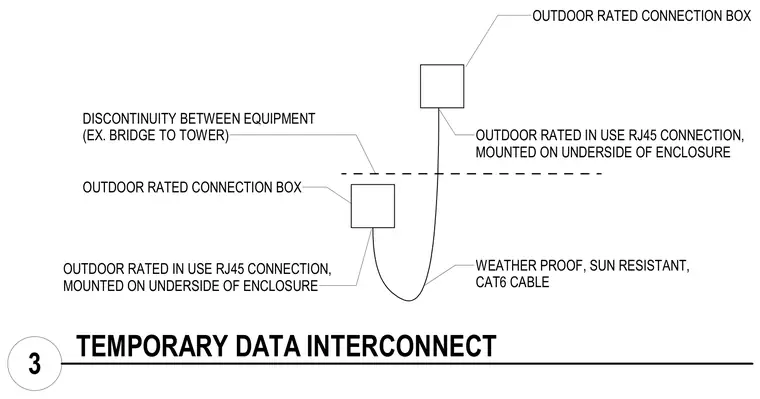

An outdoor-rated connection box is mounted on each side of an equipment discontinuity, such as between a bridge and a tower. Each enclosure features an outdoor-rated in-use RJ45 connection mounted on its underside. A weather-proof, sun-resistant CAT6 cable links the two connection boxes across the gap.
