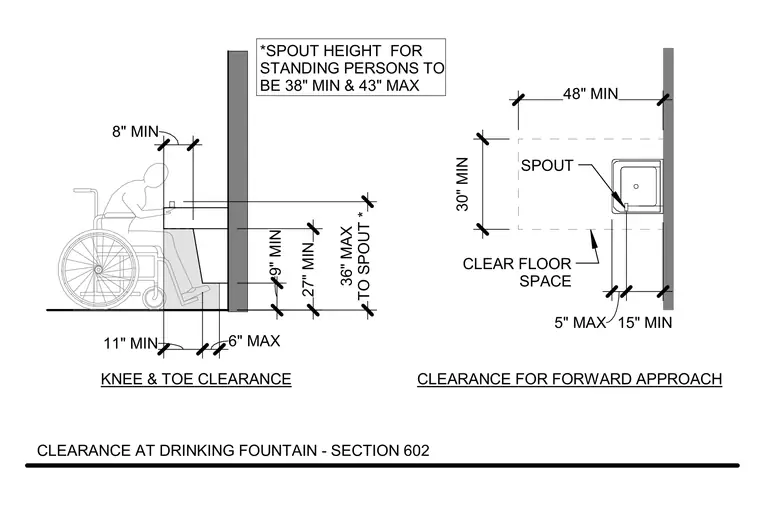

This drawing outlines the spatial clearance requirements for wall-mounted drinking fountains for accessible routes. Knee and toe clearance dimensions dictate a minimum twenty-seven inch height to the underside, a minimum nine inch toe clearance height, and maximum six inch toe depth with an eleven inch minimum knee depth. Forward approach clearances require a forty-eight inch minimum clear floor space width by thirty inches minimum depth. Spout heights are dimensioned from thirty to thirty-six inches maximum to the spout for wheelchair users, with an alternate thirty-eight to forty-three inch range permitted for standing persons. The clear floor space extends fifteen inches maximum past the spout with a five inch minimum offset.
CLEARANCE AT DRINKING FOUNTAIN - SECTION 602 KNEE & TOE CLEARANCE CLEARANCE FOR FORWARD APPROACH 30" MIN 36" MAX TO SPOUT * 27" MIN 9" MIN 6" MAX 11" MIN 8" MIN *SPOUT HEIGHT FOR STANDING PERSONS TO BE 38" MIN & 43" MAX 15" MIN 5" MAX SPOUT 48" MIN CLEAR FLOOR SPACE
