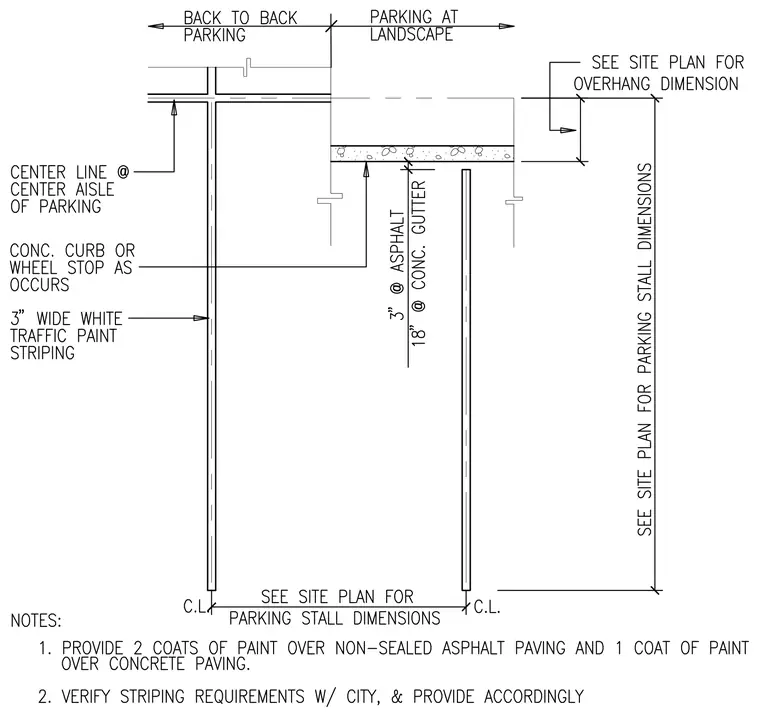

Stall configurations for back-to-back parking and parking adjacent to landscape areas comprise three inches of asphalt paving paired with an eighteen-inch concrete gutter and a concrete curb or wheel stop where applicable. Striping consists of three-inch-wide white traffic paint applied over non-sealed asphalt with two coats, and over concrete paving with one coat. Centerline dimensions are referenced to the center aisle of parking, with stall dimensions per the site plan.
