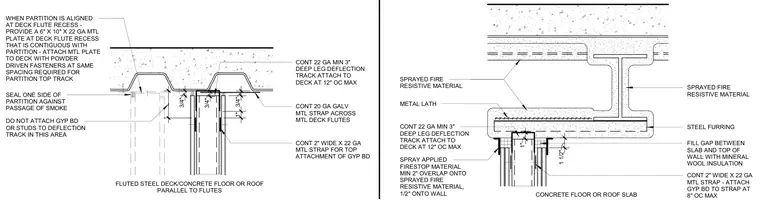

This one-hour fire-resistant smoke barrier partition detail shows the head of a gypsum board partition intersecting a concrete floor or roof slab over fluted steel deck. A continuous twenty-two gauge minimum three-inch deep leg deflection track is attached to the deck at twelve inches on center maximum using powder-driven fasteners. Gypsum board and studs are left unattached to the deflection track in the specified area. Mineral wool insulation fills the gap between the slab and the top of the wall, and spray-applied firestop material is applied with a minimum two-inch overlap onto sprayed fire-resistive material and one-half inch onto the wall. Continuous metal straps provide top attachment for the gypsum board, and a metal plate is installed at deck flute recesses when the partition aligns with the flute.
1" _ FLUTED STEEL DECK/CONCRETE FLOOR OR ROOF PARALLEL TO FLUTES CONT 2" WIDE X 22 GA MTL STRAP FOR TOP ATTACHMENT OF GYP BD CONT 22 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO DECK AT 12" OC MAX DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA SEAL ONE SIDE OF PARTITION AGAINST PASSAGE OF SMOKE WHEN PARTITION IS ALIGNED AT DECK FLUTE RECESS - PROVIDE A 6" X 10" X 22 GA MTL PLATE AT DECK FLUTE RECESS THAT IS CONTIGUOUS WITH PARTITION - ATTACH MTL PLATE TO DECK WITH POWDER DRIVEN FASTENERS AT SAME SPACING REQUIRED FOR PARTITION TOP TRACK 3/4" 3/4" CONT 20 GA GALV MTL STRAP ACROSS MTL DECK FLUTES 3/4" 1" CONCRETE FLOOR OR ROOF SLAB SPRAYED FIRE RESISTIVE MATERIAL STEEL FURRING METAL LATH SPRAYED FIRE RESISTIVE MATERIAL SPRAY APPLIED FIRESTOP MATERIAL MIN 2" OVERLAP ONTO SPRAYED FIRE RESISTIVE MATERIAL, 1/2" ONTO WALL FILL GAP BETWEEN SLAB AND TOP OF WALL WITH MINERAL WOOL INSULATION CONT 2" WIDE X 22 GA MTL STRAP - ATTACH GYP BD TO STRAP AT CONT 22 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO DECK AT 12" OC MAX 1 1/2"
