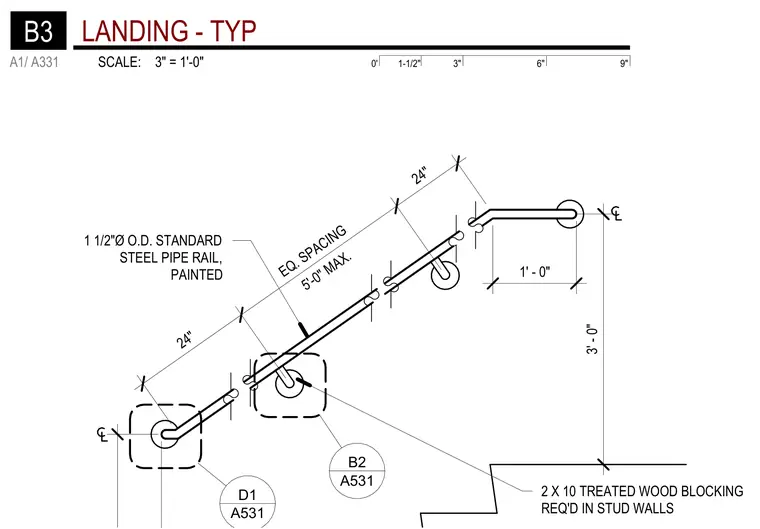

A 1 1/2-inch outside diameter standard painted steel pipe handrail is mounted to a stud wall at a stair landing. The rail is anchored using wall brackets aligned with 2x10 treated wood blocking required within the stud wall. Bracket spacing is set at a maximum of 5 feet on center with equal spacing. The center height of the rail is dimensioned at 3 feet above the landing finished floor.
3' - 0" 1' - 0" XX 5'-0" MAX. EQ. SPACING XX 24" 24" 1 1/2"Ø O.D. STANDARD STEEL PIPE RAIL, PAINTED 2 X 10 TREATED WOOD BLOCKING REQ'D IN STUD WALLS A531 D1 A531 B2 0' 6" 9" 3" 1-1/2" SCALE: 3" = 1'-0" A1/ A331 B3 LANDING - TYP
