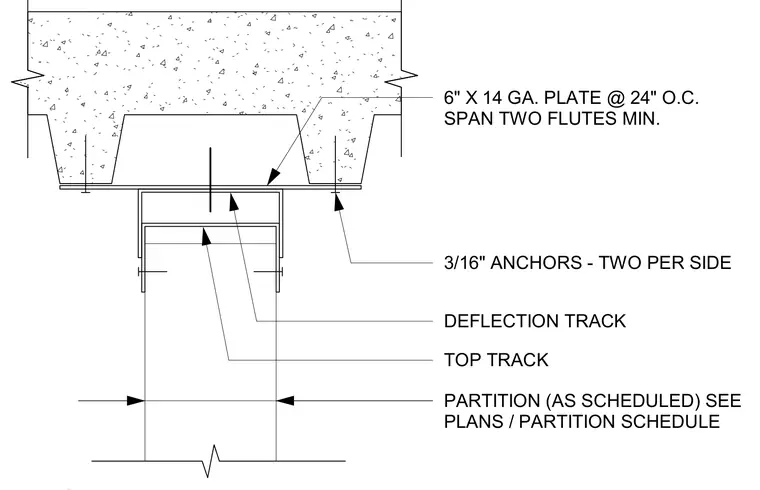

The partition top track connects to a deflection track supported below a concrete floor slab on metal deck. A six-inch by fourteen-gauge plate spaced at twenty-four inches on center spans a minimum of two flutes. Three-sixteenth-inch anchors fasten the assembly with two anchors per side. The partition is constructed as scheduled per the architectural plans.
PARTITION (AS SCHEDULED) SEE PLANS / PARTITION SCHEDULE TOP TRACK DEFLECTION TRACK 3/16" ANCHORS - TWO PER SIDE 6" X 14 GA. PLATE @ 24" O.C. SPAN TWO FLUTES MIN.
