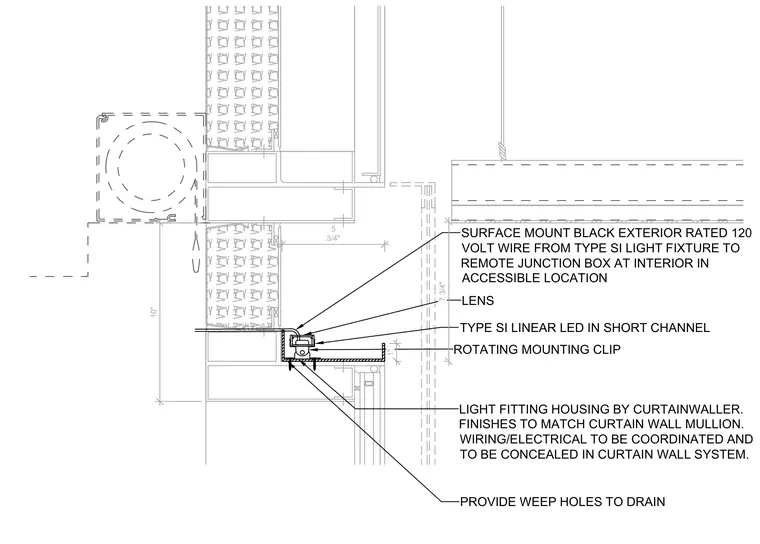

A type SI linear LED light fixture sits inside a short channel with a rotating mounting clip, secured to a ten-inch lens light fitting housing provided by the curtainwaller. Finishes match the curtain wall mullion with wiring and electrical concealed within the curtain wall system. A surface-mounted black exterior-rated 120-volt wire runs from the light fixture to a remote junction box at the interior in an accessible location. Weep holes are provided to drain moisture from the housing assembly.
10" LENS LIGHT FITTING HOUSING BY CURTAINWALLER. FINISHES TO MATCH CURTAIN WALL MULLION. WIRING/ELECTRICAL TO BE COORDINATED AND TO BE CONCEALED IN CURTAIN WALL SYSTEM. PROVIDE WEEP HOLES TO DRAIN SURFACE MOUNT BLACK EXTERIOR RATED 120 VOLT WIRE FROM TYPE SI LIGHT FIXTURE TO REMOTE JUNCTION BOX AT INTERIOR IN ACCESSIBLE LOCATION TYPE SI LINEAR LED IN SHORT CHANNEL ROTATING MOUNTING CLIP 7 3/4" 5 3/4" 1"
