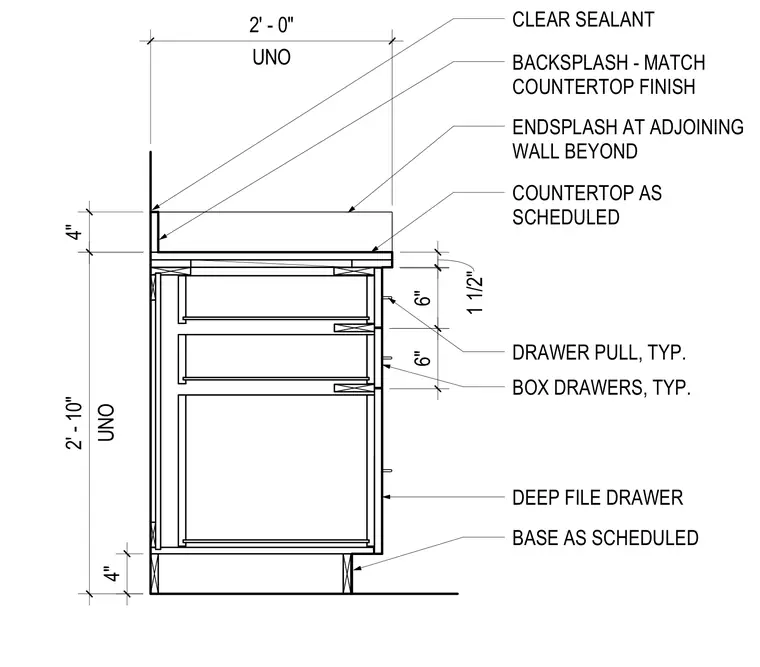

A base cabinet comprises two box drawers and one deep file drawer with typical drawer pulls. The unit is supported on a base as scheduled with a total height of two feet ten inches unless noted otherwise. A countertop as scheduled is installed above, finished with a matching backsplash and an endsplash at the adjoining wall beyond. Clear sealant is applied at the wall intersection.
4" 4" UNO 2' - 0" UNO 2' - 10" 1 1/2" BASE AS SCHEDULED DRAWER PULL, TYP. 6" 6" BACKSPLASH - MATCH COUNTERTOP FINISH ENDSPLASH AT ADJOINING WALL BEYOND COUNTERTOP AS SCHEDULED CLEAR SEALANT BOX DRAWERS, TYP. DEEP FILE DRAWER
