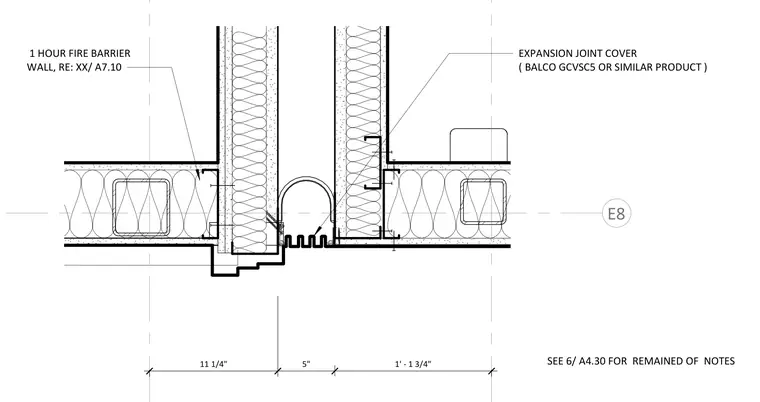

An interior expansion joint cover type Balco GCVSC5 or similar product spans a five-inch gap between two framed wall assemblies. The adjacent partitions serve as a one-hour fire barrier wall and feature metal studs with gypsum board finishes on both sides and internal batt insulation. Fasteners anchor the joint assembly and framing components according to the referenced architectural sheets.
E8 EXPANSION JOINT COVER ( BALCO GCVSC5 OR SIMILAR PRODUCT ) 1 HOUR FIRE BARRIER WALL, RE: XX/ A7.10 11 1/4" 5" 1' - 1 3/4" SEE 6/ A4.30 FOR REMAINED OF NOTES
