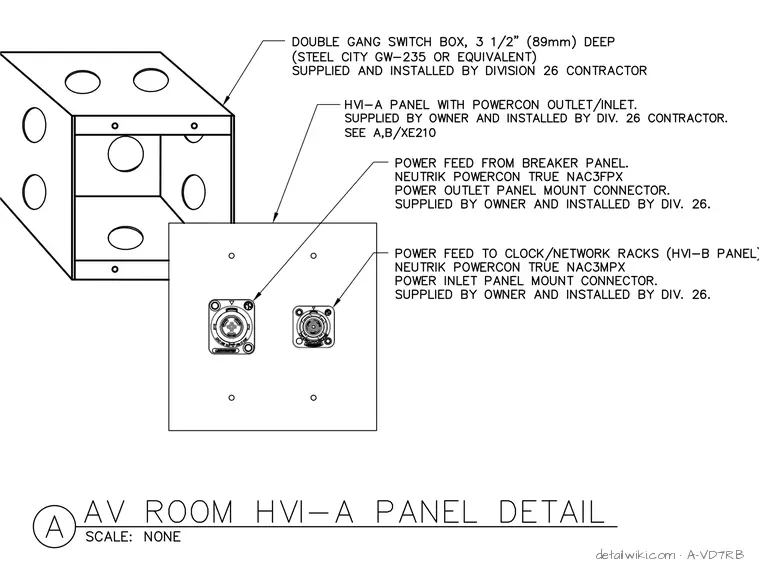

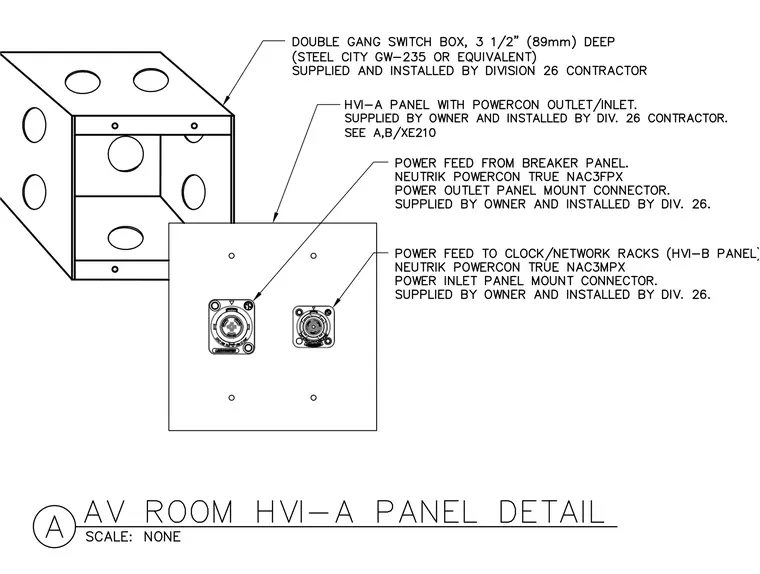

An HVI-A panel with powercon outlet and inlet is housed in a double gang switch box measuring three and one-half inches deep, supplied and installed by the division 26 contractor. A power feed from the breaker panel connects to a Neutrik powercon true NAC3FPX power outlet panel mount connector. A power feed to clock and network racks connects to a Neutrik powercon true NAC3MPX power inlet panel mount connector. All components are supplied by the owner and installed by division 26.
