An interior storefront frame connects to a scheduled wall framed with two eighteen-gauge metal studs mechanically fastened at the jambs. The surrounding wall is finished with five-eighths-inch Type X gypsum board, painted where exposed, and edged with a metal gypsum corner bead. Wood blocking is provided as required between the framing and the storefront head or jamb assembly. A continuous backer rod and joint sealant seal the perimeter gap between the drywall return and the storefront aluminum frame.

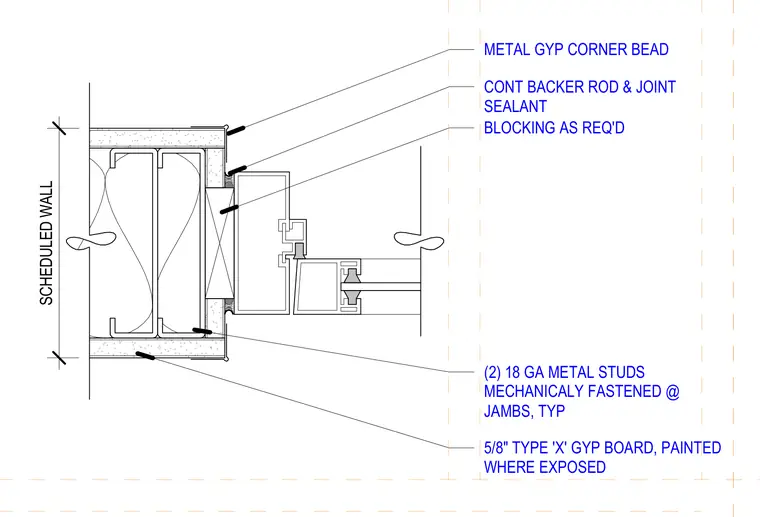

SCHEDULED WALL METAL GYP CORNER BEAD BLOCKING AS REQ'D CONT BACKER ROD & JOINT SEALANT 5/8" TYPE 'X' GYP BOARD, PAINTED WHERE EXPOSED (2) 18 GA METAL STUDS MECHANICALY FASTENED @ JAMBS, TYP
