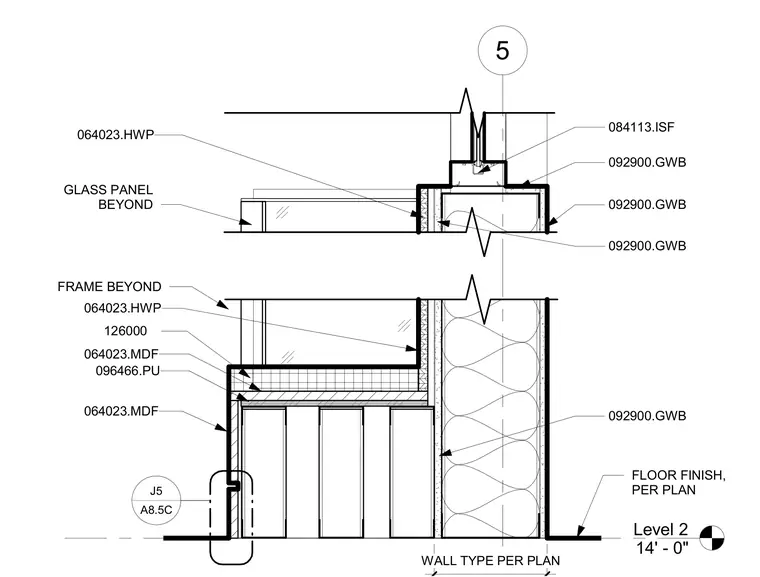

An interior wall assembly of gypsum wallboard on framing meets a glass panel with an aluminum-framed opening and hardwood paneling. The base of the assembly is finished with medium-density fiberboard and polyurethane finishes at the floor line per plan. Metal framing and glass components extend beyond the primary junction as indicated.
Level 2 14' - 0" 5 FLOOR FINISH, PER PLAN 064023.MDF 064023.MDF ________________________________________________ A8.5C J5 FRAME BEYOND GLASS PANEL BEYOND 084113.ISF 092900.GWB 092900.GWB 064023.HWP 064023.HWP 092900.GWB 092900.GWB WALL TYPE PER PLAN 096466.PU 126000
