This non-rated interior wall assembly consists of four-inch metal framing spaced at twenty-four inches on center with five-eighths-inch gypsum wallboard applied to both sides. The stud cavity is filled with glass fiber batt acoustic insulation to improve sound attenuation. Dimensions indicate an overall wall thickness of five and one-quarter inches.

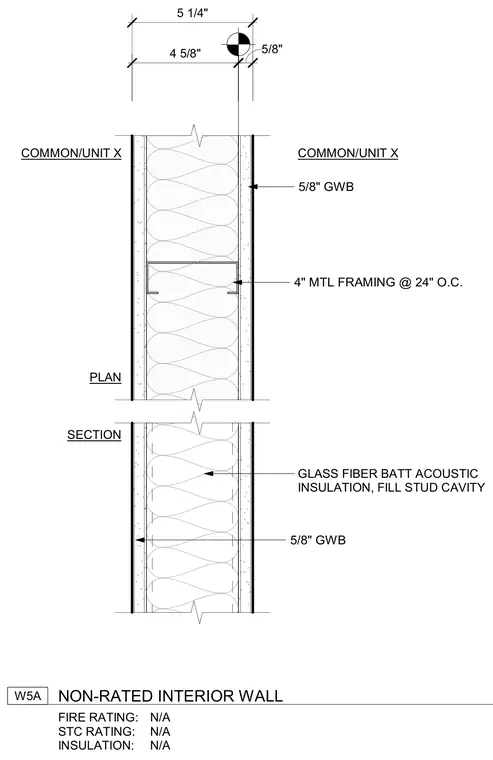

5/8" GWB 4" MTL FRAMING @ 24" O.C. GLASS FIBER BATT ACOUSTIC INSULATION, FILL STUD CAVITY PLAN SECTION COMMON/UNIT X COMMON/UNIT X 5/8" GWB FIRE RATING: STC RATING: INSULATION: W5A NON-RATED INTERIOR WALL N/A N/A N/A 4 5/8" 5/8" 5 1/4"
