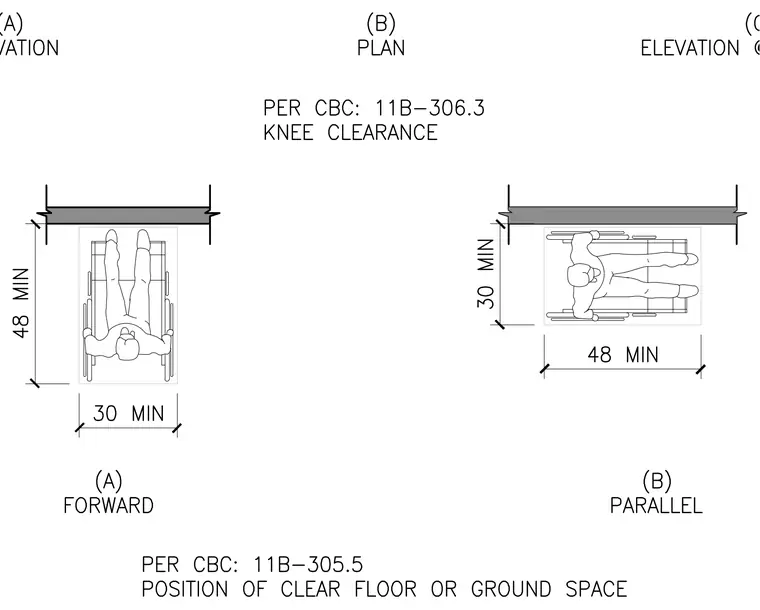

Accessibility diagram showing forward and parallel wheelchair positioning with required knee clearance dimensions per CBC 11B-306.3 and CBC 11B-305.5. The forward approach indicates a thirty-inch minimum width and forty-eight-inch minimum depth. The parallel approach indicates a thirty-inch minimum depth and forty-eight-inch minimum width against a knee clearance boundary.
