Architectural · A-VBWAX

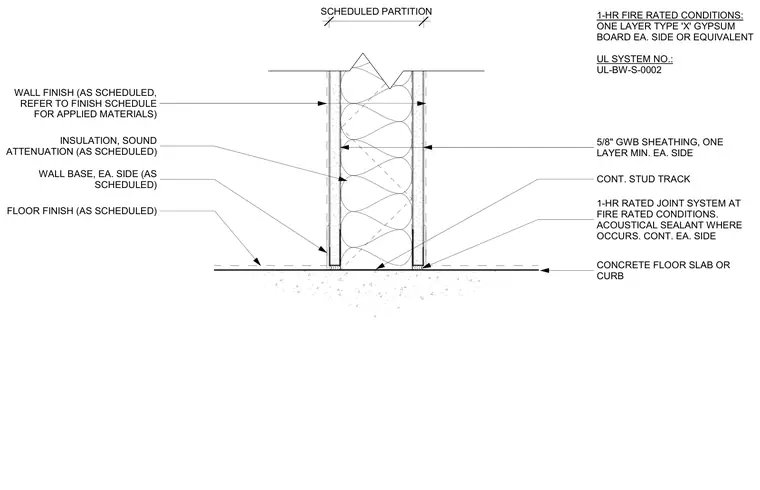

Typical Partition Base at Concrete Slab (1-Hr)

Materials

Elements

Walls Partitions Floors / Slabs Insulation Site / Paving

About this detail

The assembly anchors to a concrete floor slab or curb using continuous stud tracks on each side. Sound attenuation insulation fills the stud cavity, and one minimum layer of five-eighths-inch gypsum wallboard sheathing is installed on each side to achieve a one-hour fire rating, corresponding to UL system number UL-BW-S-0002. Wall bases and floor finishes are installed on each side as scheduled, with acoustical sealant applied continuously at fire-rated conditions. Wall finishes are applied over the gypsum sheathing per the interior finish schedule.
