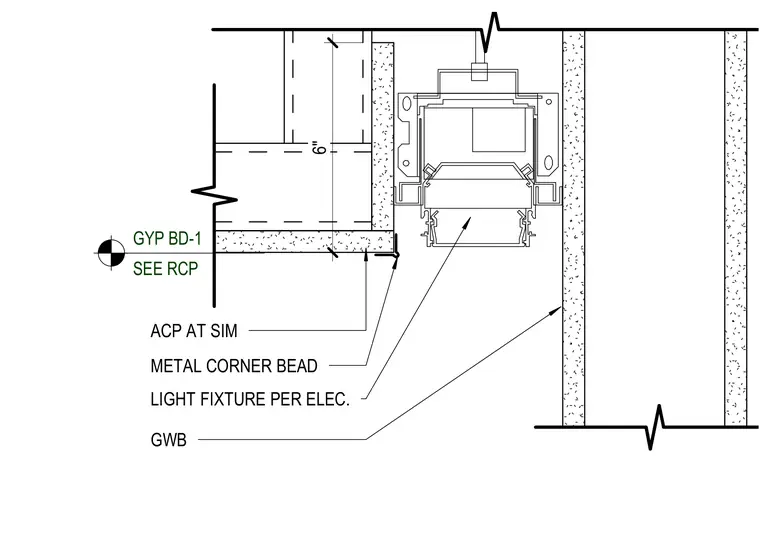

A six-inch gypsum board ceiling assembly transitions directly to a recessed light fixture furnished per electrical drawings. A metal corner bead finishes the gypsum board edge adjacent to the fixture opening. The assembly is finished with specified gypsum board type one as indicated on the reflected ceiling plan.
GWB 6" GYP BD-1 SEE RCP METAL CORNER BEAD LIGHT FIXTURE PER ELEC. ACP AT SIM
