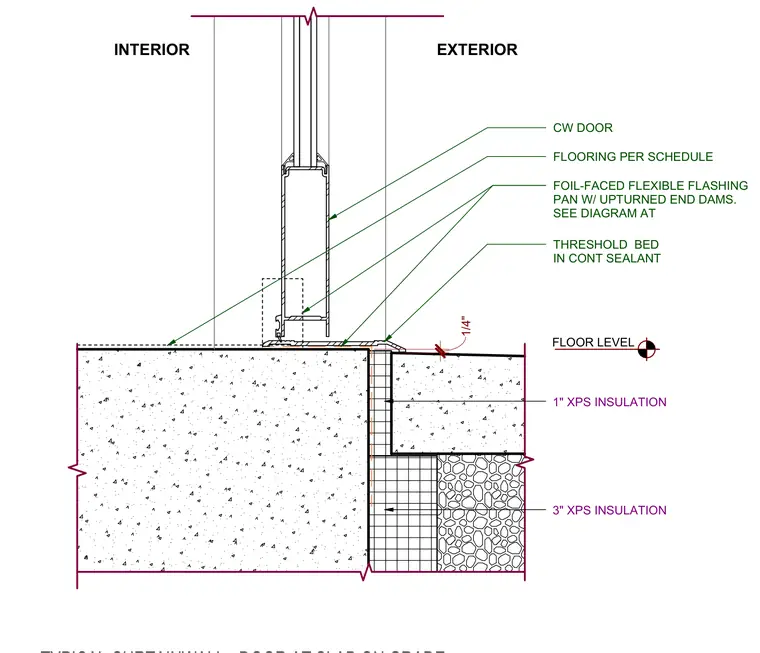

The curtainwall door threshold bears directly on the concrete floor level bed set in continuous sealant. A foil-faced flexible flashing pan with upturned end dams is integrated beneath the threshold to manage moisture. Perimeter edge insulation consists of one-inch extruded polystyrene insulation directly below the slab edge and three-inch extruded polystyrene insulation extending down the exterior foundation face. Flooring finish is applied per schedule matching interior requirements.
FLOOR LEVEL THRESHOLD BED IN CONT SEALANT FLOORING PER SCHEDULE 1/4" CW DOOR FOIL-FACED FLEXIBLE FLASHING PAN W/ UPTURNED END DAMS. SEE DIAGRAM AT 1" XPS INSULATION 3" XPS INSULATION EXTERIOR INTERIOR
