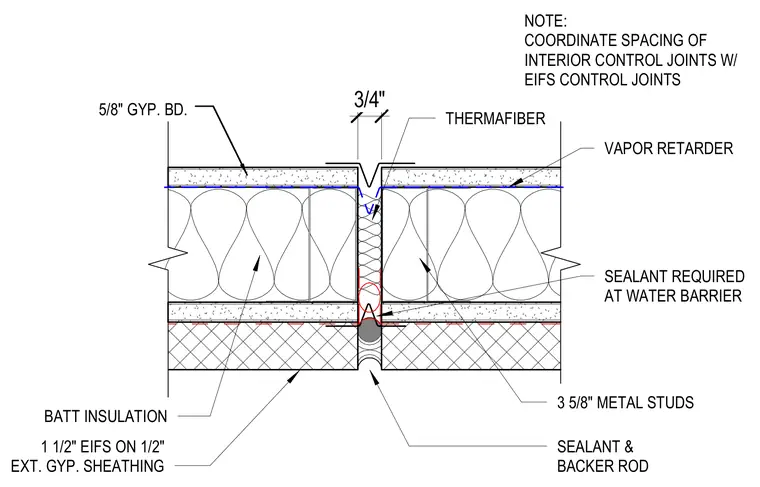

An exterior wall control joint spans three-quarter inches across the assembly, separating sections framed with three and five-eighths inch metal studs and faced with interior five-eighths inch gypsum board and exterior one-half inch exterior gypsum sheathing finished with one and one-half inch EIFS. Batt insulation and Thermafiber fill the stud cavity behind a continuous vapor retarder. A sealant and backer rod fill the exterior joint, with sealant required at the water barrier. Spacing of interior control joints is coordinated with the EIFS control joints.
THERMAFIBER 5/8" GYP. BD. BATT INSULATION 3 5/8" METAL STUDS SEALANT & BACKER ROD 1 1/2" EIFS ON 1/2" EXT. GYP. SHEATHING NOTE: COORDINATE SPACING OF INTERIOR CONTROL JOINTS W/ EIFS CONTROL JOINTS 3/4" VAPOR RETARDER SEALANT REQUIRED AT WATER BARRIER
