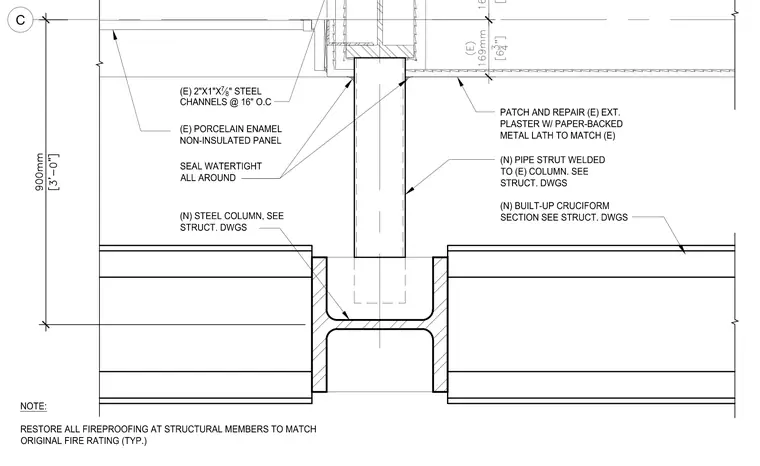

A new pipe strut is welded to an existing structural steel column, connecting to a built-up cruciform section as specified in the structural drawings. Existing 2-inch by 1-inch by 7/8-inch steel channels are spaced at 16 inches on center behind existing porcelain enamel non-insulated panels. Exterior plaster with paper-backed metal lath is patched and repaired to match the existing finish. All joints are sealed watertight all around, and fireproofing at structural members is restored to match the original fire rating typically.
(E) 2"X1"X 78 " STEEL CHANNELS @ 16" O.C PATCH AND REPAIR (E) EXT. PLASTER W/ PAPER-BACKED METAL LATH TO MATCH (E) (E) PORCELAIN ENAMEL NON-INSULATED PANEL (N) BUILT-UP CRUCIFORM SECTION SEE STRUCT. DWGS (N) STEEL COLUMN, SEE STRUCT. DWGS C (N) PIPE STRUT WELDED TO (E) COLUMN. SEE STRUCT. DWGS NOTE: RESTORE ALL FIREPROOFING AT STRUCTURAL MEMBERS TO MATCH ORIGINAL FIRE RATING (TYP.) SEAL WATERTIGHT ALL AROUND
