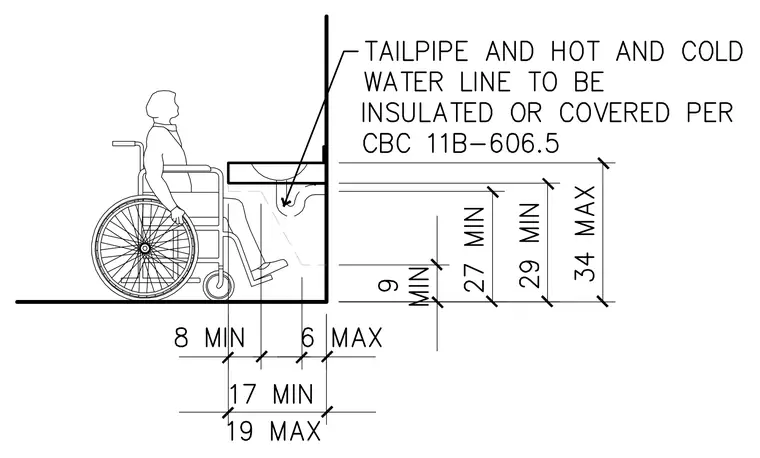

An accessible lavatory mounted to the wall with a wheelchair user shown for knee and toe clearance verification. Vertical dimensions establish a thirty-four inch maximum rim height, a twenty-nine inch minimum knee clearance, and a twenty-seven inch minimum clearance for a depth of nine inches minimum. Horizontal dimensions provide an eight inch minimum toe depth, a six inch maximum toe depth, a seventeen inch minimum knee depth, and a nineteen inch maximum knee depth. Tailpipes and hot and cold water lines require insulation or covering per California Building Code 11B-606.5.
