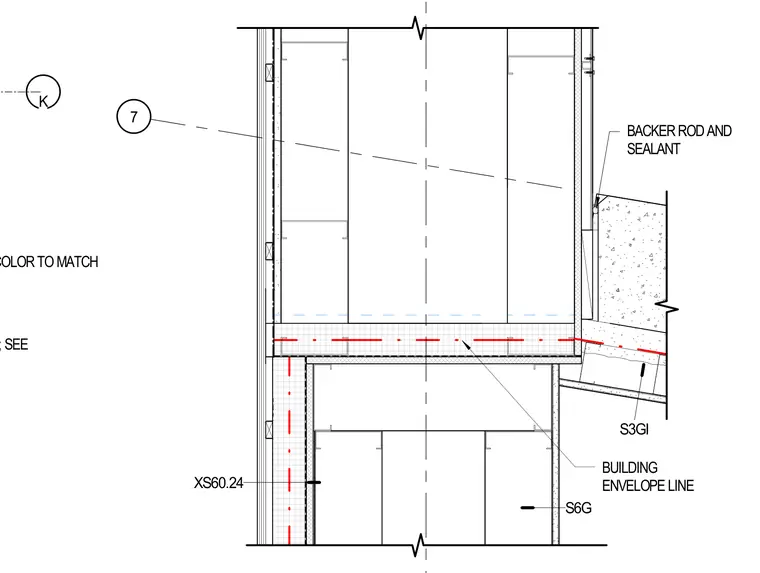

A backer rod and sealant joint seals the connection between the wingwall and the building envelope line. Caulking is applied as required, with color matched to the recessed light fixture. Additional reference callouts point to sheet details S6G, S3GI, and XS60.24.
K CAULKING AS REQUIRED. COLOR TO MATCH RECESSED LIGHT FIXTURE; SEE 7 S6G S3GI XS60.24 BUILDING ENVELOPE LINE BACKER ROD AND SEALANT
