Architectural · A-VAXWZ

Partition Wall Slip Track Head and Base Connection

Materials

Elements

About this detail

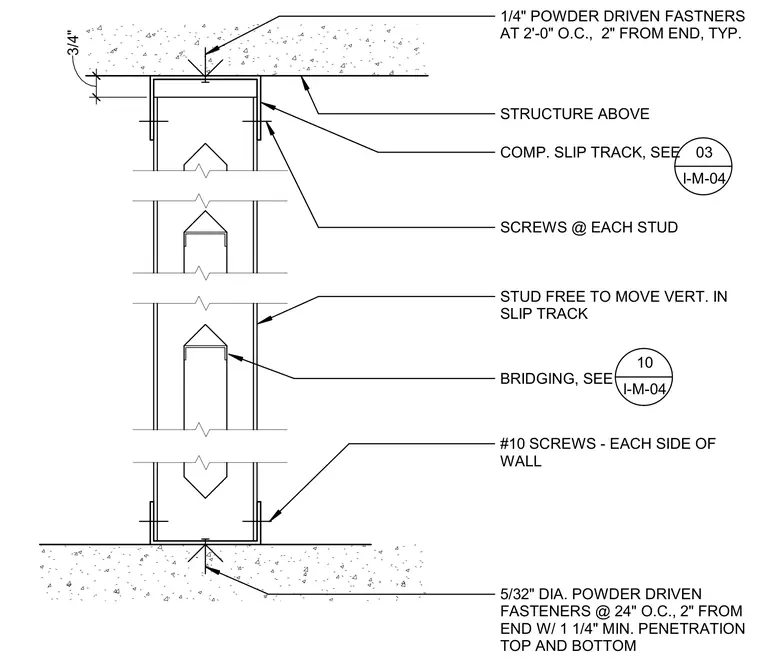

The partition wall head assembly connects to the structure above using a compressive slip track attached with one-quarter-inch powder-driven fasteners spaced at two feet on center with two-inch end distances. Studs remain free to move vertically within the slip track, secured laterally with screws at each stud. Wall bridging is installed at intermediate heights. At the base, the bottom track is anchored to the floor slab with five-thirty-seconds-inch diameter powder-driven fasteners spaced at twenty-four inches on center with one-quarter-inch minimum penetration, and fastened with number ten screws on each side of the wall.
