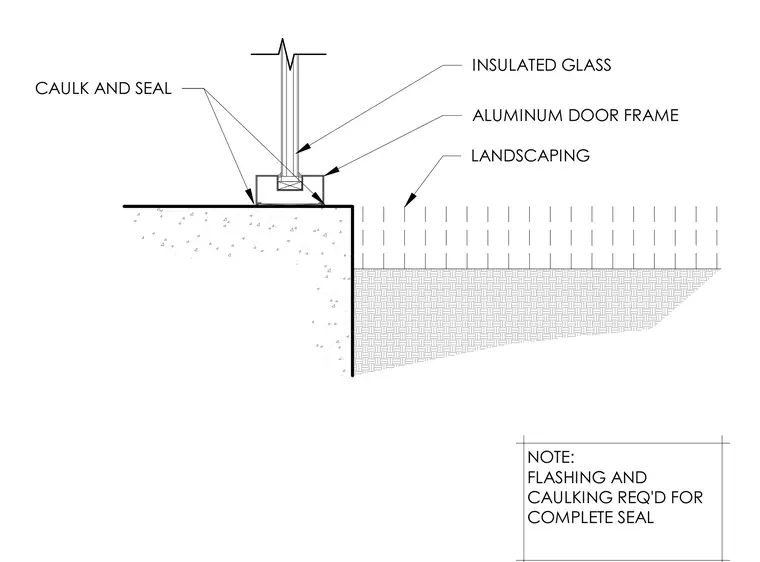

An aluminum door frame sits atop a concrete slab adjacent to exterior landscaping, supporting an insulated glass unit. Continuous caulk and seal are applied along the base and frame joints to prevent water infiltration. Flashing and caulking are required for a complete seal at the threshold.
INSULATED GLASS ALUMINUM DOOR FRAME CAULK AND SEAL LANDSCAPING NOTE: FLASHING AND CAULKING REQ'D FOR COMPLETE SEAL
