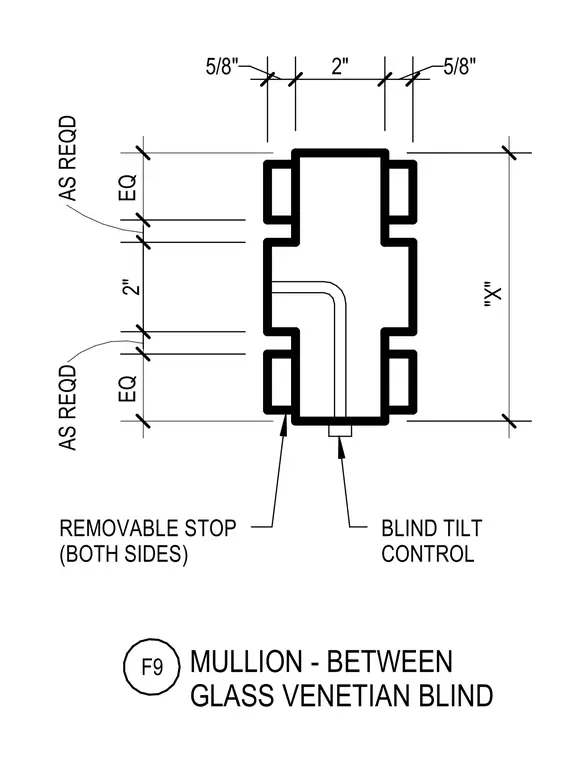

An "X" mullion supports a glass venetian blind assembly with removable stops provided on both sides. A blind tilt control mechanism is positioned as required within the mullion profile. Dimensions indicate equal spacing and specific profile widths including five-eighths inch and two-inch segments.
5/8" 2" 5/8" 2" "X" MULLION - BETWEEN GLASS VENETIAN BLIND F9 REMOVABLE STOP (BOTH SIDES) BLIND TILT CONTROL AS REQD AS REQD EQ EQ
