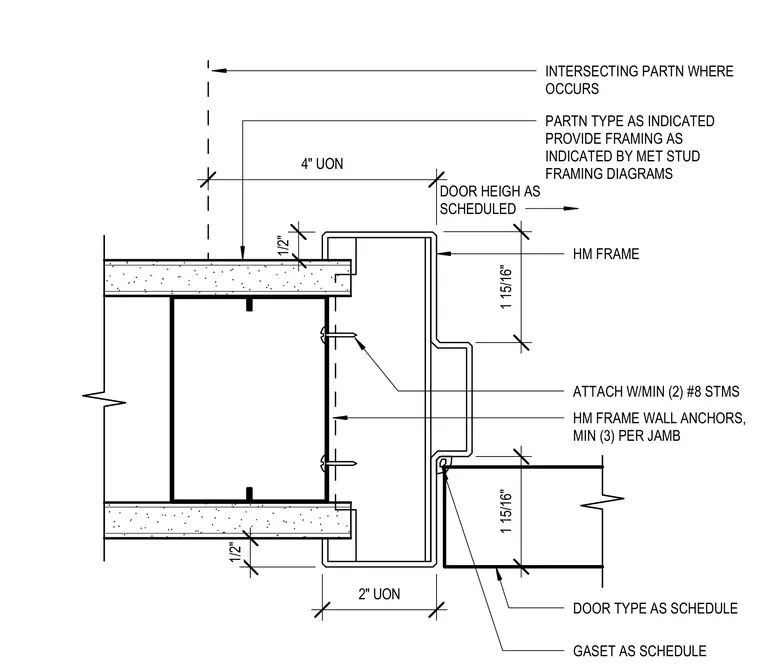

The assembly consists of a hollow metal frame installed at a gypsum board partition on metal stud framing. The hollow metal frame is secured with a minimum of three wall anchors per jamb and attached with a minimum of two number eight sheet metal screws. Gasket provisions are installed per schedule. Partition framing is provided as indicated on the metal stud framing diagrams.
2" UON 1/2" 1/2" 4" UON 1 15/16" 1 15/16" PARTN TYPE AS INDICATED PROVIDE FRAMING AS INDICATED BY MET STUD FRAMING DIAGRAMS HM FRAME WALL ANCHORS, MIN (3) PER JAMB HM FRAME ATTACH W/MIN (2) #8 STMS GASET AS SCHEDULE INTERSECTING PARTN WHERE OCCURS DOOR HEIGH AS SCHEDULED DOOR TYPE AS SCHEDULE
