A sixteen-gauge minimum slip track with two-inch deep slotted legs and one-inch on-center slots accommodates vertical deflection beneath a concrete slab. Number eight sheet metal screws secure both sides at jamb conditions, while number ten sheet metal screws with stand-off washers or wafer heads fasten each side at the center of each one-inch slot. A three-eighths-inch diameter Hilti KB3 anchor with two-and-a-half-inch embedment fastens at the flutes typical at jamb conditions. Powder-driven fasteners at sixteen inches on-center with one-and-a-half-inch minimum embedment anchor the track to the concrete overhead, maintaining a three-quarter-inch structural gap.

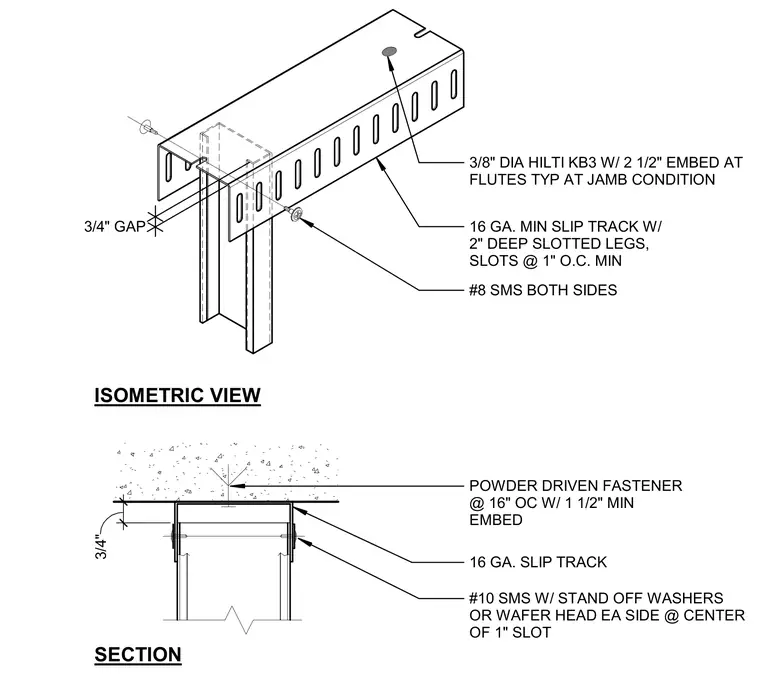

ISOMETRIC VIEW SECTION 3/4" GAP 16 GA. MIN SLIP TRACK W/ 2" DEEP SLOTTED LEGS, SLOTS @ 1" O.C. MIN #8 SMS BOTH SIDES 3/4" 16 GA. SLIP TRACK #10 SMS W/ STAND OFF WASHERS OR WAFER HEAD EA SIDE @ CENTER OF 1" SLOT 3/8" DIA HILTI KB3 W/ 2 1/2" EMBED AT FLUTES TYP AT JAMB CONDITION POWDER DRIVEN FASTENER @ 16" OC W/ 1 1/2" MIN EMBED
