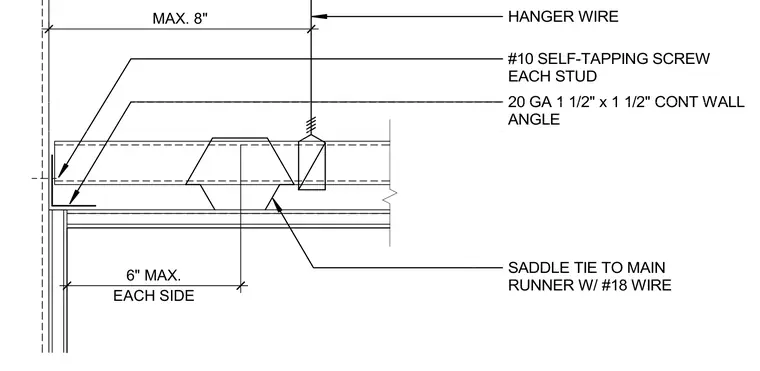

A continuous twenty-gauge one-and-one-half-inch by one-and-one-half-inch wall angle supports the acoustical or drywall suspension system at the perimeter partition. Number ten self-tapping screws secure the main runner or studs to the wall angle at a maximum spacing of eight inches on center. Hanger wires suspend the grid system from the overhead structure with saddle ties secured using number eighteen wire. The main runner maintains a maximum distance of six inches from each side of the hanger wire support.
MAX. 8" EACH SIDE 6" MAX. HANGER WIRE #10 SELF-TAPPING SCREW EACH STUD SADDLE TIE TO MAIN RUNNER W/ #18 WIRE 20 GA 1 1/2" x 1 1/2" CONT WALL ANGLE
