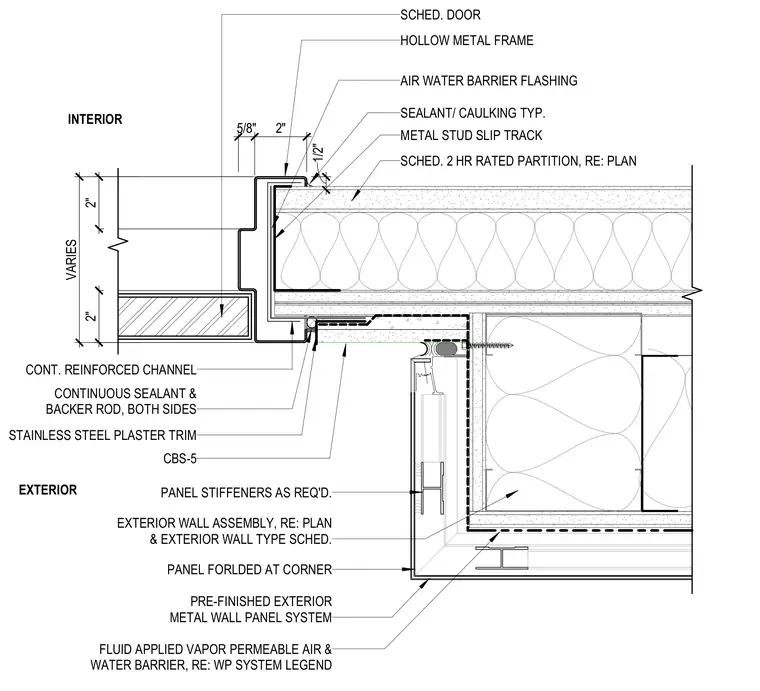

Jamb condition of an exterior door set within a rated metal stud partition and exterior metal panel wall assembly. A hollow metal frame fits against a metal stud slip track and is backed by a continuous reinforced channel. A pre-finished exterior metal wall panel system wraps the corner with panel stiffeners as required, installed over a fluid-applied vapor permeable air and water barrier. Continuous sealant with backer rod and a stainless steel plaster trim seal the transition between the exterior finish and the door frame. An air and water barrier flashing provides weatherproofing at the perimeter interface.
2" VARIES 5/8" 2" 2" 1/2" EXTERIOR INTERIOR PANEL STIFFENERS AS REQ'D. PRE-FINISHED EXTERIOR METAL WALL PANEL SYSTEM PANEL FORLDED AT CORNER EXTERIOR WALL ASSEMBLY, RE: PLAN & EXTERIOR WALL TYPE SCHED. FLUID APPLIED VAPOR PERMEABLE AIR & WATER BARRIER, RE: WP SYSTEM LEGEND SCHED. DOOR HOLLOW METAL FRAME CONT. REINFORCED CHANNEL SEALANT/ CAULKING TYP. METAL STUD SLIP TRACK SCHED. 2 HR RATED PARTITION, RE: PLAN CBS-5 STAINLESS STEEL PLASTER TRIM CONTINUOUS SEALANT & BACKER ROD, BOTH SIDES AIR WATER BARRIER FLASHING
