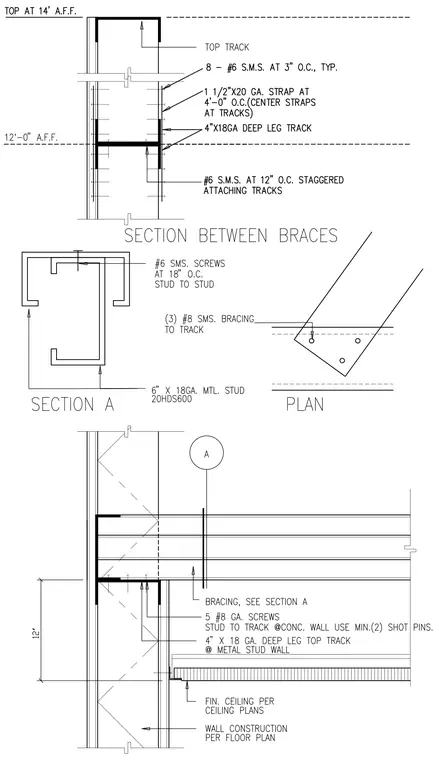

Cold-formed metal stud wall assembly framing details featuring a top track at 14 feet above finished floor and a 4-inch by 18-gauge deep leg track at metal stud walls. Connections incorporate number 6 sheet metal screws spaced at 3 inches on center typically, 1-1/2 inch by 20-gauge straps at 4 feet on center, and number 8 gauge screws with stud to track connections using a minimum of two shot pins at concrete walls. Section A has stud-to-stud connections using number 6 sheet metal screws at 18 inches on center, alongside bracing details secured with three number 8 sheet metal screws to the track.
