Jamb Section - Plan View

About this detail

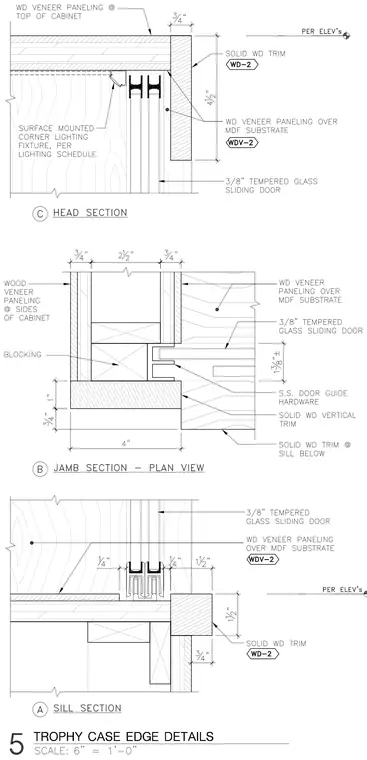

Head, jamb, and sill construction details for a millwork trophy case with sliding glass doors. The head section features a surface-mounted corner lighting fixture, a double-track ceiling guide, solid wood trim, and wood veneer paneling over a medium-density fiberboard substrate enclosing three-eighths-inch tempered glass sliding doors. The jamb section details the side framing with internal blocking, a stainless steel door guide, solid wood vertical trim, and three-quarters-inch wood veneer paneling at the sides. The sill section includes a bottom track assembly flanked by solid wood trim and base blocking. Dimensions include three-quarter-inch, two-and-a-half-inch, one-inch, and four-inch callouts.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
