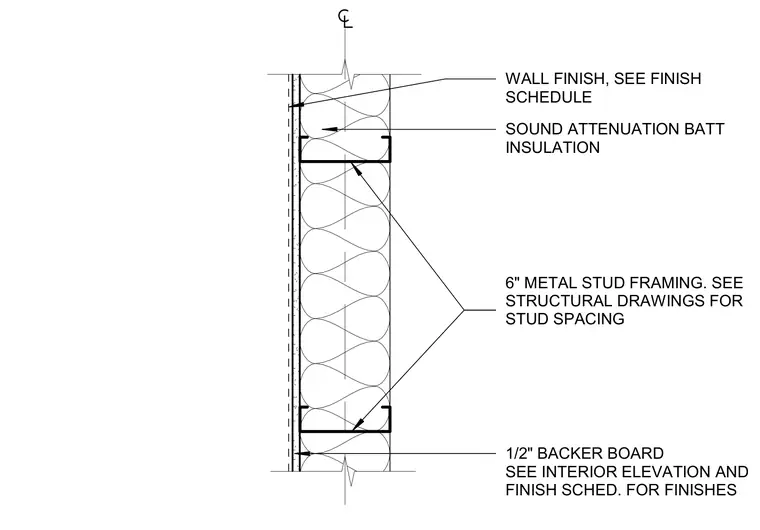

Six-inch metal stud framing provides the structural core of the partition wall. Sound attenuation batt insulation fills the cavity between the studs. A half-inch backer board is fastened to the framing to receive the designated wall finish.
6" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING 1/2" BACKER BOARD SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES SOUND ATTENUATION BATT INSULATION WALL FINISH, SEE FINISH SCHEDULE
