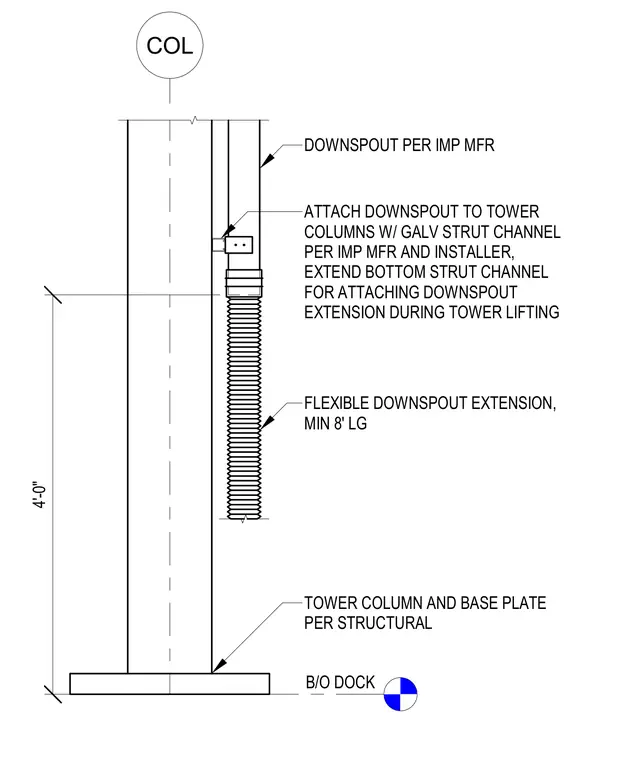

A downspout connects to a tower column four feet above the dock level using galvanized strut channels. The bottom strut channel extends to support a flexible downspout extension measuring a minimum of eight feet in length. The tower column sits on a base plate atop the bottom of the dock. All components are installed per the manufacturer and structural requirements.
B/O DOCK DOWNSPOUT PER IMP MFR COL 4'-0" ATTACH DOWNSPOUT TO TOWER COLUMNS W/ GALV STRUT CHANNEL PER IMP MFR AND INSTALLER, EXTEND BOTTOM STRUT CHANNEL FOR ATTACHING DOWNSPOUT EXTENSION DURING TOWER LIFTING FLEXIBLE DOWNSPOUT EXTENSION, MIN 8' LG TOWER COLUMN AND BASE PLATE PER STRUCTURAL
