A surface-mounted corner guard is installed at the exterior corner of a scheduled partition with locations referenced on the finish plan general notes. The corner guard extends down to the finish floor. Scheduled wall base terminates cleanly at the edges of the corner guard on both intersecting walls.

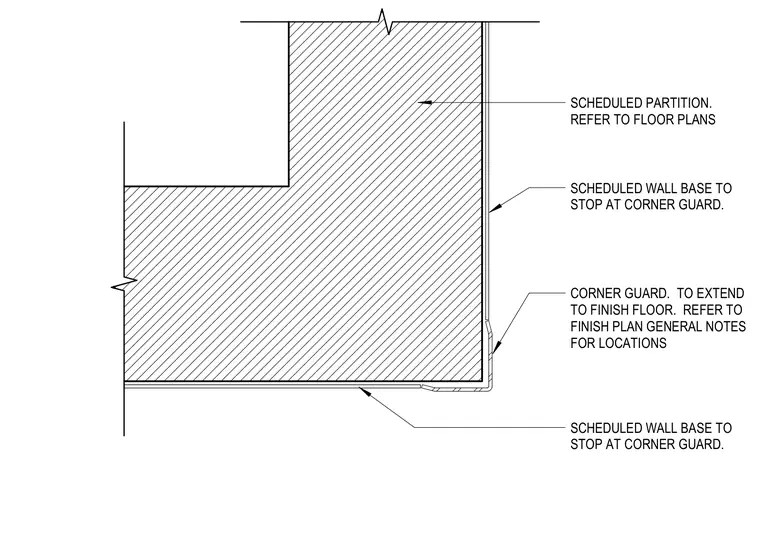

SCHEDULED PARTITION. REFER TO FLOOR PLANS SCHEDULED WALL BASE TO STOP AT CORNER GUARD. CORNER GUARD. TO EXTEND TO FINISH FLOOR. REFER TO FINISH PLAN GENERAL NOTES FOR LOCATIONS SCHEDULED WALL BASE TO STOP AT CORNER GUARD.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
