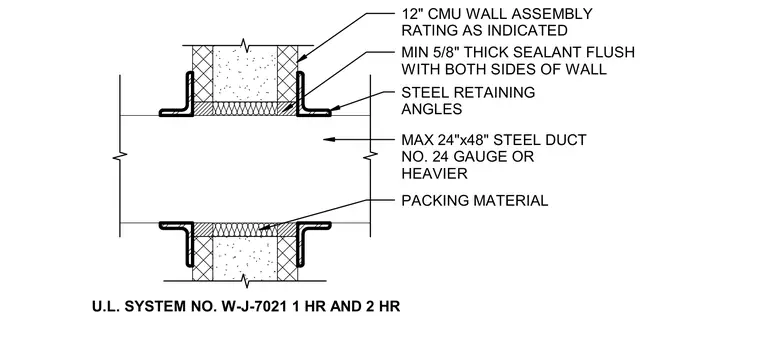

A maximum 24-inch by 48-inch steel duct rated number 24 gauge or heavier penetrates a 12-inch CMU wall assembly. The annular space is filled with packing material and finished with a minimum 5/8-inch thick sealant flush with both sides of the wall. Steel retaining angles anchor against both faces of the masonry assembly. This assembly complies with U.L. System No. W-J-7021 for 1-hour and 2-hour fire ratings.
12" CMU WALL ASSEMBLY RATING AS INDICATED MAX 24"x48" STEEL DUCT NO. 24 GAUGE OR HEAVIER PACKING MATERIAL STEEL RETAINING ANGLES U.L. SYSTEM NO. W-J-7021 1 HR AND 2 HR MIN 5/8" THICK SEALANT FLUSH WITH BOTH SIDES OF WALL
