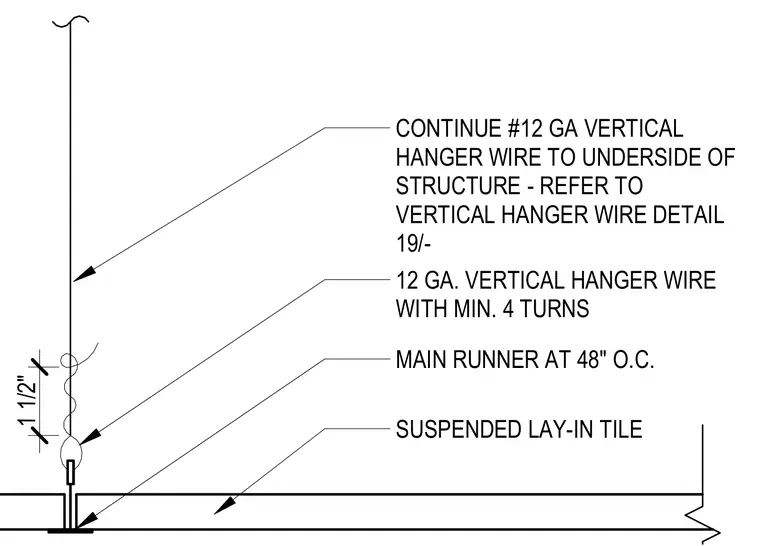

Suspended lay-in tile ceilings are hung using number twelve gauge vertical hanger wires spaced at forty-eight inches on center. The hanger wires extend up to the underside of the structure above. At the ceiling grid connection, the wire secures to the main runner with a minimum of four turns. Suspended lay-in tiles sit within the resulting grid system.
MAIN RUNNER AT 48" O.C. SUSPENDED LAY-IN TILE CONTINUE #12 GA VERTICAL HANGER WIRE TO UNDERSIDE OF STRUCTURE - REFER TO VERTICAL HANGER WIRE DETAIL 19/- 12 GA. VERTICAL HANGER WIRE WITH MIN. 4 TURNS 1 1/2"
