Cold-Formed Steel Joist Bearing Conditions

Units: metric
Discipline: Architectural

About this detail

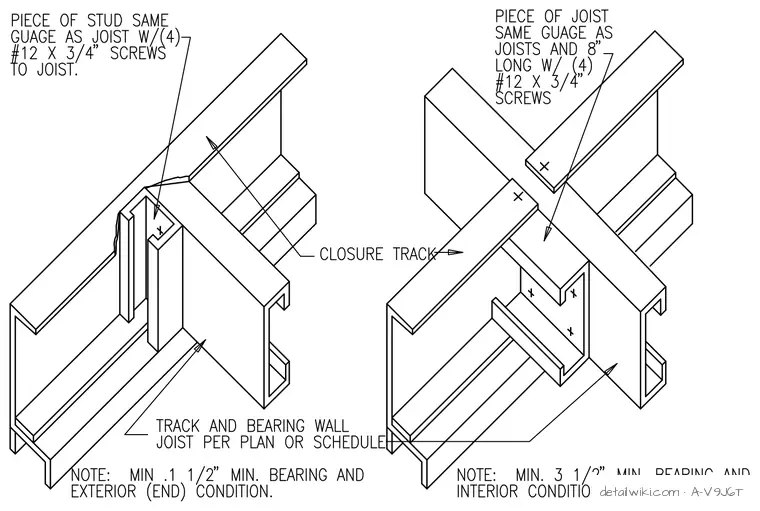

The exterior end condition consists of a cold-formed steel joist bearing on a track and wall, reinforced with a stud segment of the same gauge as the joist, secured with four number 12 by 3/4 inch screws, requiring a minimum of 1 1/2 inches of bearing. The interior condition consists of a joist bearing on a track and wall, utilizing a joist segment of the same gauge as the joist, cut 8 inches long and fastened with four number 12 by 3/4 inch screws, requiring a minimum of 3 1/2 inches of bearing. Both conditions incorporate a closure track at the top of the bearing wall to stabilize the joist ends.
