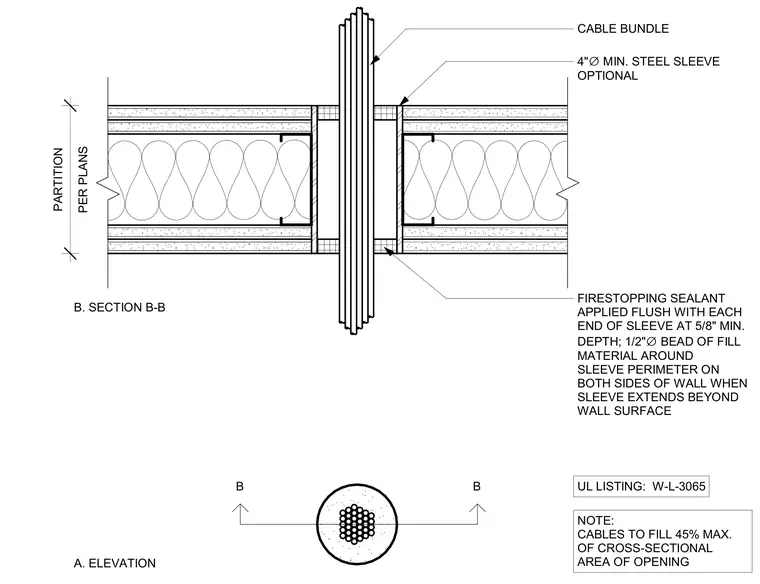

A cable bundle passes through a partition opening lined with an optional four-inch diameter minimum steel sleeve. Firestopping sealant is applied flush with each end of the sleeve at a five-eighths-inch minimum depth. A half-inch diameter bead of fill material seals the sleeve perimeter on both sides of the wall when the sleeve extends beyond the wall surface. Cables are limited to filling a maximum of forty-five percent of the cross-sectional area of the opening per UL listing W-L-3065.
A. ELEVATION B. SECTION B-B UL LISTING: W-L-3065 CABLE BUNDLE B B NOTE: CABLES TO FILL 45% MAX. OF CROSS-SECTIONAL AREA OF OPENING FIRESTOPPING SEALANT APPLIED FLUSH WITH EACH END OF SLEEVE AT 5/8" MIN. DEPTH; 1/2" ∅ BEAD OF FILL MATERIAL AROUND SLEEVE PERIMETER ON BOTH SIDES OF WALL WHEN SLEEVE EXTENDS BEYOND WALL SURFACE 4" ∅ MIN. STEEL SLEEVE OPTIONAL PER PLANS PARTITION
