An exterior wall assembly incorporates a Nichiha fiber cement panel faced with a one-and-three-eighths-inch dimensional offset. A one-and-one-half-inch stainless steel fixture with an integrated LED light mounts directly to the panel assembly. Additional lighting integration details are referenced on a separate sheet.

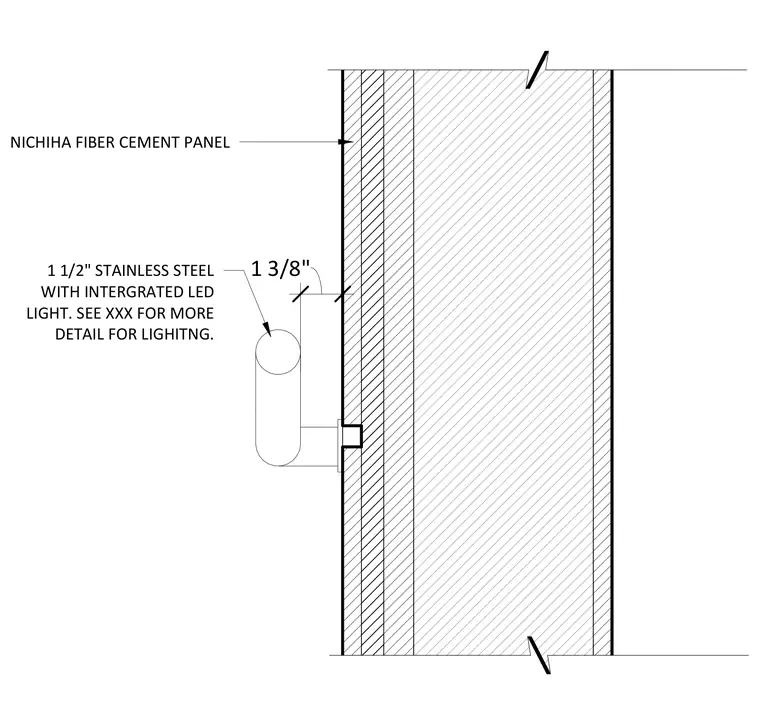

1 1/2" STAINLESS STEEL WITH INTERGRATED LED LIGHT. SEE XXX FOR MORE DETAIL FOR LIGHITNG. NICHIHA FIBER CEMENT PANEL 1 3/8"
