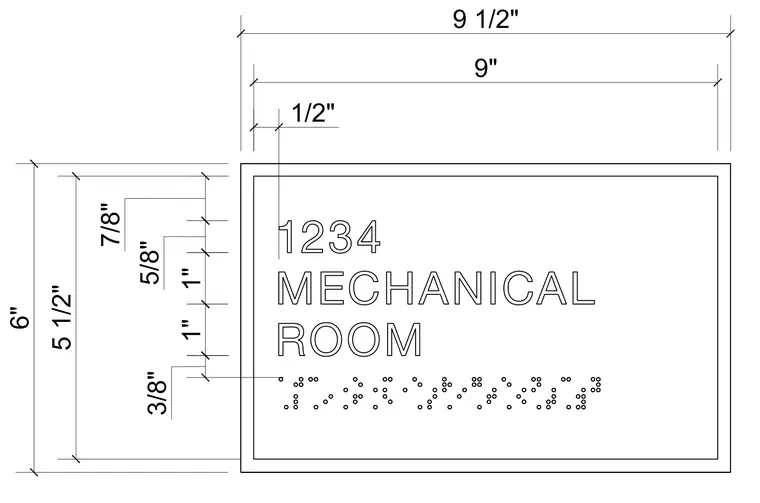

The sign assembly measures 9-1/2 inches wide by 6 inches high overall, featuring a 1/2-inch border frame around a 9-inch by 5-1/2-inch sign panel. Raised text reads 1234 MECHANICAL ROOM, positioned with specific vertical spacings of 7/8 inch, 5/8 inch, 1 inch, and 1 inch from the top edge. Braille dots are located along the lower portion of the panel, positioned 3/8 inch above the bottom frame edge.
