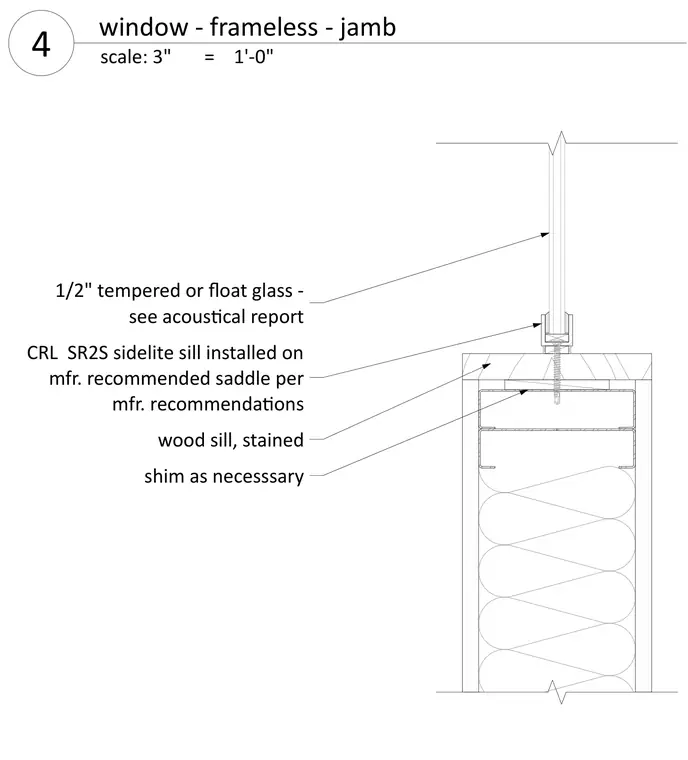

A one-half inch tempered or float glass panel is secured in a CRL SR2S sidelite sill installed on a manufacturer-recommended saddle per manufacturer recommendations. The assembly bears on a stained wood sill, which is shimmed as necessary above a framed wall cavity containing batt insulation. Fasteners anchor through the saddle and wood sill into the underlying framing.
1/2" tempered or float glass - see acous Ɵcal report CRL SR2S sidelite sill installed on mfr. recommended saddle per mfr. recommenda Ɵons wood sill, stained shim as necesssary scale: 3" = 1'-0" 4 window - frameless - jamb
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
