Architectural · A-V8YYT

Millwork Countertop Support at HSS Post and Foot Rail

Materials

Steel Timber / Wood Metal (misc.)

Elements

Columns Floors / Slabs Millwork / Casework Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

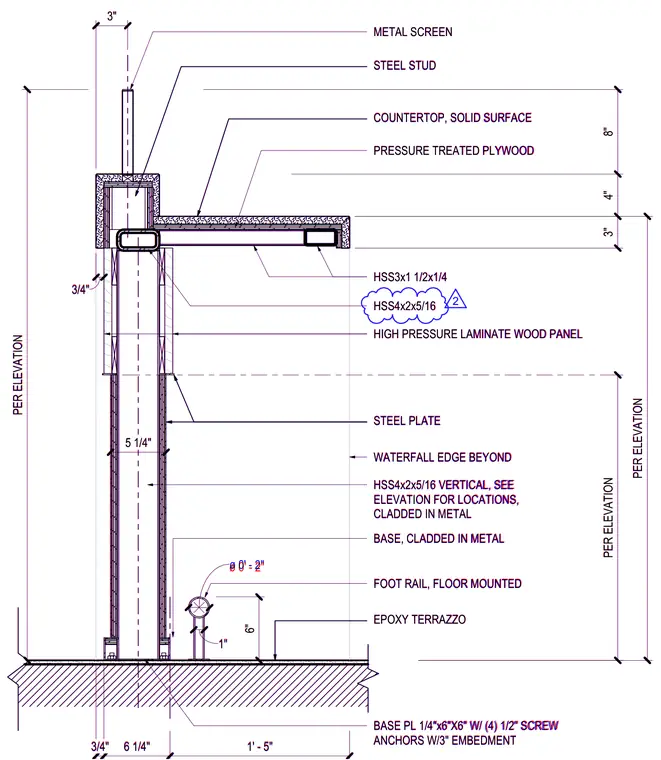

The assembly is anchored to the floor by a one-quarter-inch by six-inch by six-inch base plate with four half-inch screw anchors set to a three-inch embedment. Vertical support is provided by hollow structural section HSS4x2x5/16 posts clad in metal, with framing members including HSS3x1-1/2x1/4 and steel studs. The counter base is finished with high-pressure laminate wood panels and a steel plate. The countertop consists of pressure-treated plywood topped with a solid surface material and features a metal screen at the back. A floor-mounted foot rail with a two-inch diameter is installed six inches above the epoxy terrazzo flooring.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
