Architectural · A-V8VT9

Spring Isolated Acoustical Ceiling Panel Assembly

Materials

Concrete Steel Timber / Wood Aluminum Metal (misc.)Gypsum / Drywall

Elements

About this detail

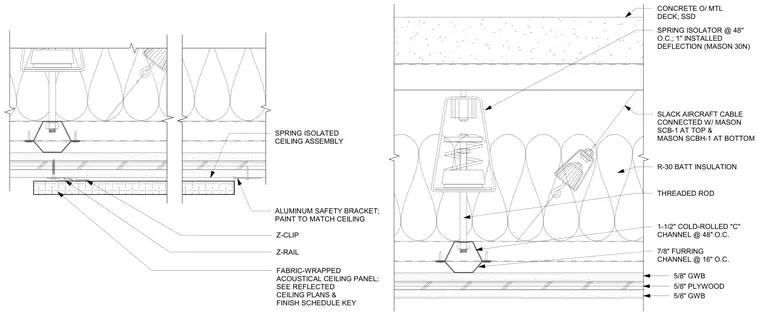

A spring-isolated acoustical ceiling assembly suspends from a concrete-on-metal-deck floor slab. The suspension framework utilizes Mason 30N spring isolators spaced at forty-eight inches on center, providing a one-inch installed deflection, along with slack aircraft cables secured with Mason SCB-1 and SCBH-1 connectors. R-30 batt insulation fills the ceiling cavity above a framework of one-and-a-half-inch cold-rolled C-channels at forty-eight inches on center and seven-eighths-inch furring channels at sixteen inches on center. The drop ceiling substrate consists of a sandwich layer of five-eighths-inch gypsum wallboard, five-eighths-inch plywood, and a lower layer of five-eighths-inch gypsum wallboard. Fabric-wrapped acoustical ceiling panels attach to the substrate using aluminum safety brackets, Z-clips, and Z-rails painted to match the ceiling finish.
