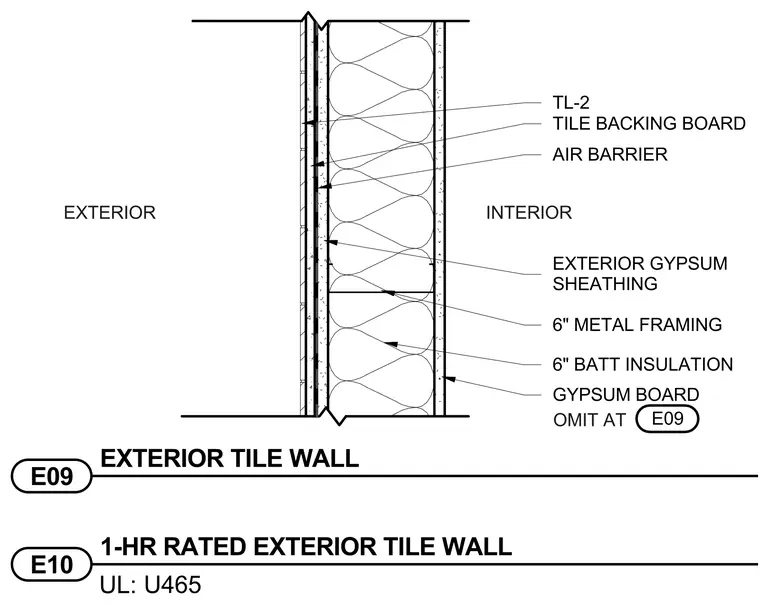

This one-hour fire-rated exterior wall assembly consists of six-inch metal framing with six-inch batt insulation in the stud cavity. The exterior side features exterior gypsum sheathing covered by an air barrier and a tile backing board supporting tile designated as TL-2. The interior side is finished with gypsum board, which is omitted at detail E09 per the drawing notes. The UL assembly designation for this partition is U465.
OMIT AT EXTERIOR INTERIOR E09 EXTERIOR TILE WALL UL: E10 1-HR RATED EXTERIOR TILE WALL U465 E09 6" BATT INSULATION GYPSUM BOARD 6" METAL FRAMING EXTERIOR GYPSUM SHEATHING AIR BARRIER TL-2 TILE BACKING BOARD
