A 1x7 galvanized steel strand complies with ASTM A 475 standards with a Class A coating and left regular lay in extra high strength (EHS) grade. The specific size shown is a 1/2 inch diameter strand with an approximate weight of 517 pounds per 1000 feet and a breaking strength of 26,900 pounds. Finish options include either galvanized or galvanized PVC coated.

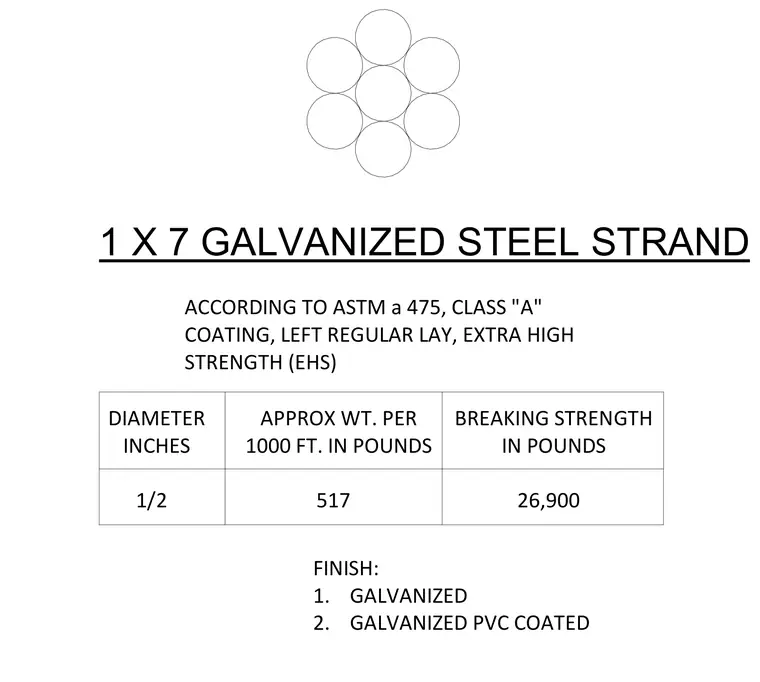

1 X 7 GALVANIZED STEEL STRAND ACCORDING TO ASTM a 475, CLASS "A" COATING, LEFT REGULAR LAY, EXTRA HIGH STRENGTH (EHS) DIAMETER INCHES 1/2 APPROX WT. PER 1000 FT. IN POUNDS 517 BREAKING STRENGTH IN POUNDS 26,900 FINISH: 1. GALVANIZED 2. GALVANIZED PVC COATED
