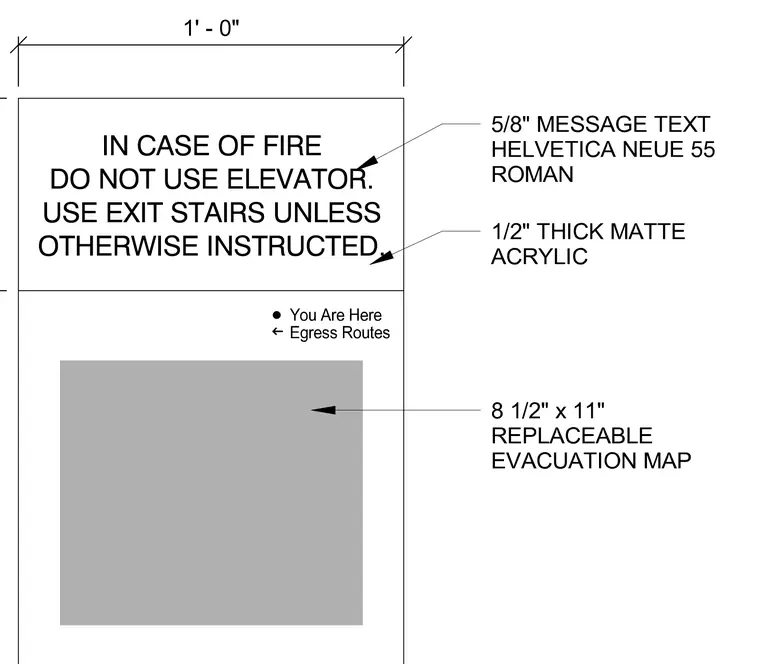

This wall-mounted fire evacuation sign spans one foot in width and is constructed from a one-half-inch thick matte acrylic backer. The upper portion displays the mandatory fire warning message in five-eighths-inch Helvetica Neue 55 Roman text. Below the message text, a designated pocket holds an eight-and-one-half by eleven-inch replaceable evacuation map with a locator marker indicating current position and egress routes.
