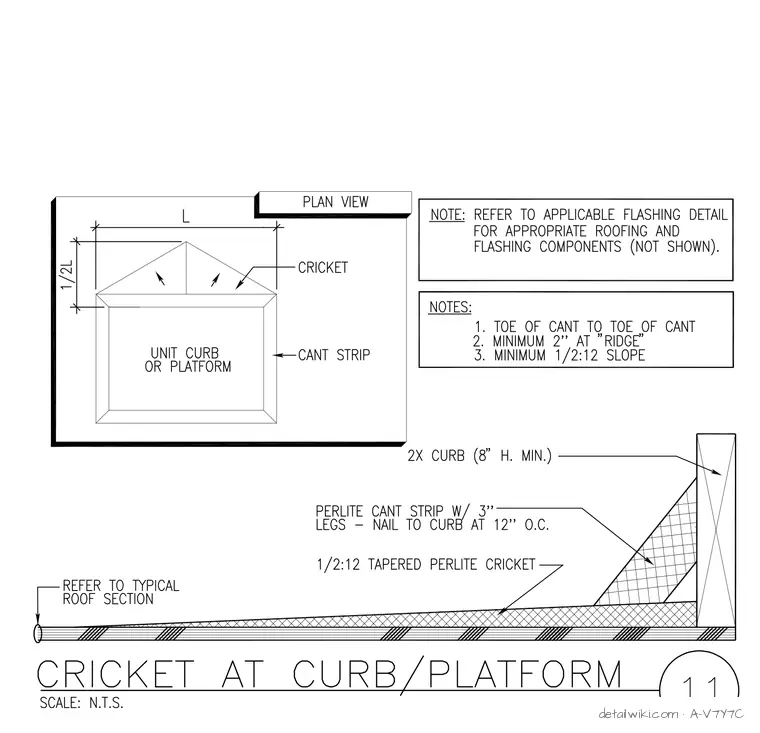

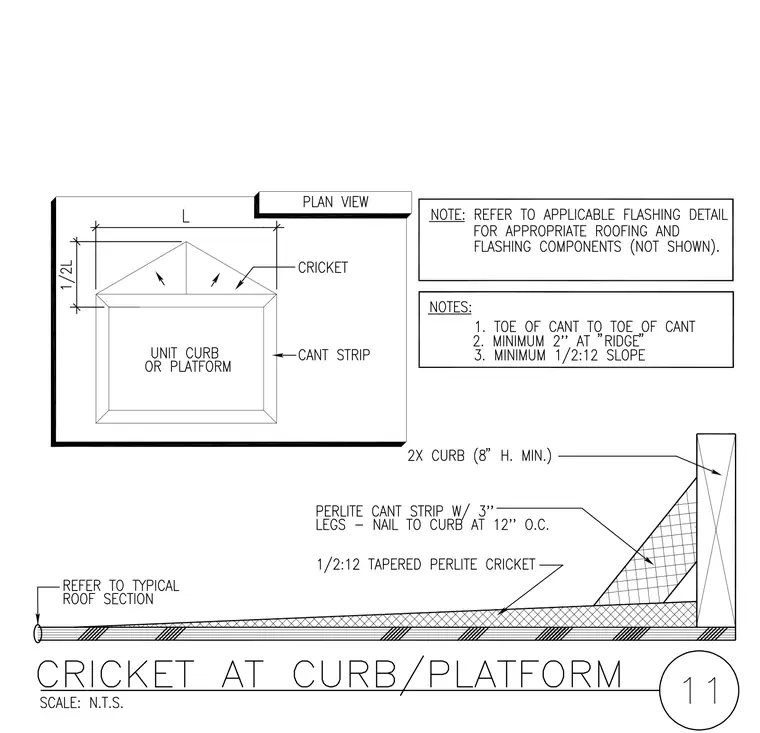

A two-by wood curb with a minimum height of eight inches supports a perlite cant strip with three-inch legs nailed to the curb at twelve inches on center. A one-half in twelve tapered perlite cricket diverts water away from the curb and rests on the roof deck, which connects to a typical roof section. The plan view dictates a minimum two-inch height at the ridge and a minimum one-half in twelve slope, with toe of cant to toe of cant dimensions. Applicable flashing details govern appropriate roofing and flashing components not shown.
