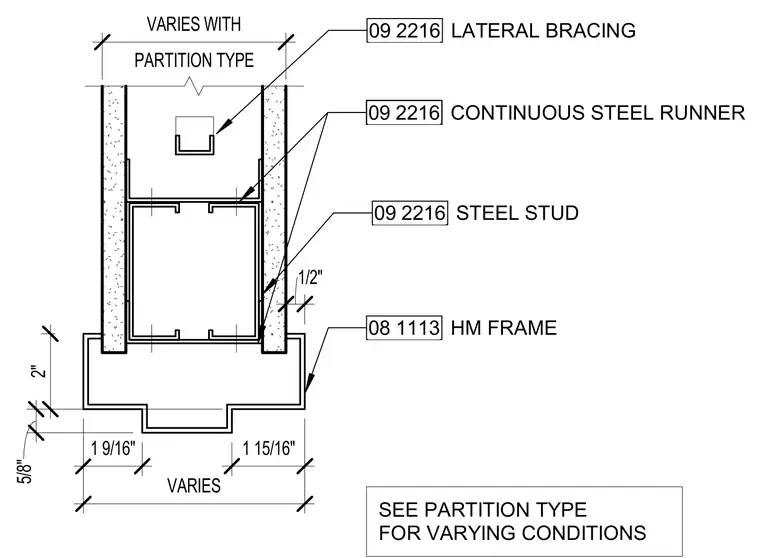

A hollow metal frame connects to a partition head framed with continuous steel runners and steel studs. Lateral bracing is provided within the cavity, with dimensions varying by partition type. Gypsum board finishes the wall surfaces on each side.
1 15/16" 1 9/16" VARIES 1/2" PARTITION TYPE VARIES WITH 2" 5/8" SEE PARTITION TYPE FOR VARYING CONDITIONS 09 2216 LATERAL BRACING 09 2216 CONTINUOUS STEEL RUNNER 09 2216 CONTINUOUS STEEL RUNNER 08 1113 HM FRAME 09 2216 STEEL STUD
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
